固定式單層遠紅外線隧道烘箱是指爐盤固定、網鏈旋轉傳輸被加熱物料的遠紅外線隧道加熱設備，具有節能、效率高、升溫快、應用范圍廣的顯著特點。

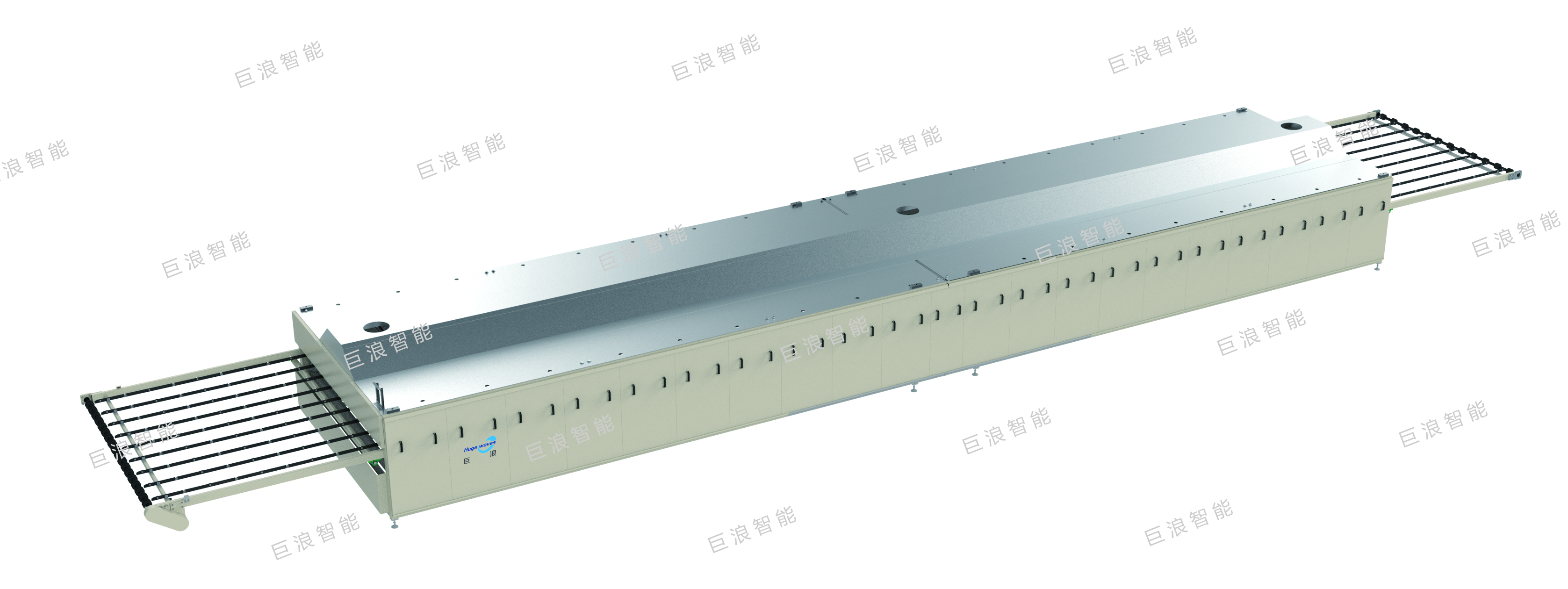

The fixed single-layer far infrared tunnel over refers to the far infrared tunnel heating equipment which fixes the heated object through furnace plate and has rotary transmission of heated object through net chain; it is superior in terms of energy conservation, efficiency, temperature rise and application scope.
固定式單層遠紅外線隧道烘箱是指爐盤固定、網鏈旋轉傳輸被加熱物料的遠紅外線隧道加熱設備，具有節能、效率高、升溫快、應用范圍廣的顯著特點。
The fixed single-layer far infrared tunnel over refers to the far infrared tunnel heating equipment which fixes the heated object through furnace plate and has rotary transmission of heated object through net chain; it is superior in terms of energy conservation, efficiency, temperature rise and application scope.
選配：1.桁架上料機械手；2.板料復合機；3.接觸式加熱機；4.機器人自動上下料；5.伸縮送料機；6.自動上下料機
Optional: 1. Truss feeding manipulator; 2. Sheet laminating machine; 3. Touch type heater; 4.Automatic loading and unloading by robot; 5.Telescopic feeder;6.Automatic up and down feeding machine
*可根據客戶的需求定制
*Able to be customized
*參數及圖片可能變化，具體以技術協議為準
*Parameters and photos may vary. The technical agreement prevails
序號 S/N | 型號Model | 加熱區數量Number of heating zones | 最高設定溫度℃ Max. Temperature ℃ | 最大加熱材料（L*W） Max. Heated Material (L*W) | 網鏈速度 mm/s Net Chain Speed mm/s | 溫度均勻度 Temperature uniformity | 溫度波動度 Temperature fluctuation |
1 | HW-IO-FO11015AA | 1 | 400 | 1000*1500 | 1-800 | ±3% | ±1℃ |
2 | HW-IO-FO21015AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
3 | HW-IO-FO31015AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
4 | HW-IO-FO11720AA | 1 | 400 | 1700*2000 | 1-800 | ±3% | ±1℃ |
5 | HW-IO-FO21720AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
6 | HW-IO-FO31720AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
7 | HW-IO-FO11827AA | 1 | 400 | 1800*2700 | 1-800 | ±3% | ±1℃ |
8 | HW-IO-FO21827AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
9 | HW-IO-FO31827AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
10 | HW-IO-FO12130AA | 1 | 400 | 2100*3000 | 1-800 | ±3% | ±1℃ |
11 | HW-IO-FO22130AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
12 | HW-IO-FO32130AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
13 | HW-IO-FO13030AA | 1 | 400 | 3000*3000 | 1-800 | ±3% | ±1℃ |
14 | HW-IO-FO23030AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
15 | HW-IO-FO33030AA | 3 | 400 | 1-800 | ±3% | ±1℃ |
